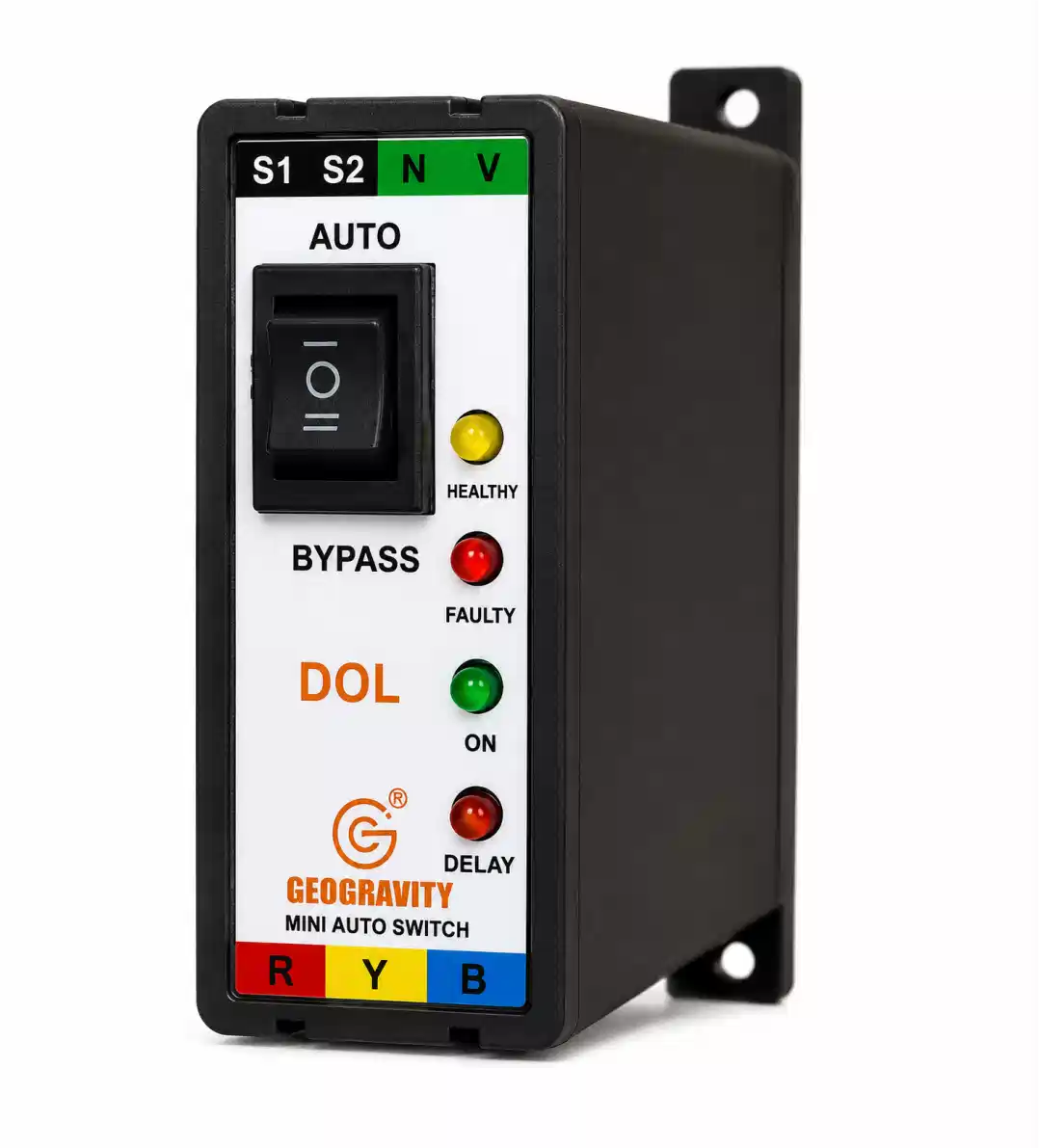

Geo Make Mini Auto Switch for DOL Starter

Mini Auto switch for DOL starter  by Geo Make is designed for automatic starting and protection of three-phase agricultural and industrial pumps. It automatically starts the pump when power resumes after a power failure, with power-on delay. The unit also provides phase sequence protection and single-phasing protection for reliable pump operation.

The unit features an power-on delay, allowing the electrical supply to stabilize before the pump is started. It also provides phase sequence protection and single-phasing protection, helping prevent motor operation under incorrect or missing phase conditions.

Mini Auto Switch for DOL Starter – Key Features

The auto switch provides automatic pump restart after power restoration along with phase sequence and single-phasing protection.

• Geo Make Mini Auto Switch
• Automatic pump start when power resumes
• Power-on delay
• Phase sequence protection
• Single-phasing protection
• Designed for use with DOL starters / Fully Automatic Star Delta Starter
• Helps protect three-phase pump motors
• Reduces the need for manual pump operation
• Suitable for agricultural and industrial applications
• Easy to install with a compatible DOL starter

How It Works

When the three-phase power supply is interrupted, the pump stops. When power is restored, the Geo Make Mini Auto Switch detects the incoming supply and checks the phase condition.

After the Power ON delay, the switch allows the Star Delta starter to operate and automatically starts the pump.

The delay helps avoid immediate motor starting when power returns, particularly in areas where the power supply may fluctuate or return intermittently.

If an incorrect phase sequence or single-phasing condition is detected, the protection system prevents the pump from operating, helping reduce the risk of motor damage.

Protection Functions

1. Automatic Restart

After a power failure, the pump can automatically restart when the power supply returns. This is especially useful for agricultural pumps where continuous or unattended operation is required.

2. Power-On Delay

The starting delay is 1 minute. This gives time for the incoming electrical supply to stabilize before the pump is started.

3. Phase Sequence Protection

The unit checks the phase sequence before allowing the pump to operate. This helps prevent the motor from running in the wrong direction due to incorrect phase sequence.

4. Single-Phasing Protection

If one phase is missing, the Auto Switch prevents the pump from operating under the faulty supply condition, helping protect the three-phase motor.

Suitable Applications

The Geo Make Auto Switch is suitable for:

• Agricultural water pumps
• Borewell pumps
• Irrigation pumps
• Farm pump sets
• Three-phase motors
• Industrial water pumps
• DOL starter-controlled motors
• Automatic pump control systems

Benefits

• Automatic pump operation after power restoration
• No need to manually switch on the pump after every power cut
• Restart delay 1 minute
• Helps protect the motor against phase sequence problems
• Helps protect against single-phasing
• Convenient for unattended agricultural pump operation
• Suitable for use with existing DOL starter systems

Important Note

The Geo Make Mini Auto Switch is intended for use with a suitable three-phase DOL starter and should be installed by a qualified electrician. Proper electrical protection such as an appropriate MCB/MCCB, overload protection, earthing, and correctly rated DOL starter should be provided according to the motor and installation requirements.

Product Highlights

Brand: Geo Make
Product: Mini Auto Switch for DOL Starter
Power-On Delay: 1 Minute (Approx)
Operation: Automatic pump start after power restoration
Protection: Phase Sequence + Single Phasing
Application: Three-Phase Pumps and Motors
Starter Type: DOL Starter
